Sleep Apnea Monitor – CONTEC Portable Diagnostic Monitor

Performance:

• Nasal airflow measurement range: 0 rpm–40 rpm, accuracy: ±2 rpm
• SpO2 measurement range: 0%–100% (1% resolution), accuracy: 70%–100% (±2%), below 70% accuracy is not defined
• PR (Pulse Rate) measurement range: 30 bpm–250 bpm, accuracy: ±2 bpm or ±2%
• Resistance to ambient light: The deviation between the value measured under artificial light or indoor natural light and that of a dark room is less than ±1%
• Accuracy under low perfusion: at 0.4% perfusion, SpO2 accuracy: ±4%, PR accuracy: ±2 bpm or ±2%
• Power consumption: ≤100 mA
• Accuracy of measurement: ≤100 mA
• Power supply: 3.7 V rechargeable lithium battery
• Safety type: Internally powered equipment, applied part type BF

Features:

• Display of SpO2, PR, and AHI values, pulse sound, and bar graph indication
• Display of pulse waveform and respiratory flow waveform
• Low battery alarms
• Finger-out detection and limit exceeding alarms
• Battery status indicator
• Real-time clock
• On/off operation timer
• Multi-case data storage
• Continuous 12-hour data recording
• Data upload via USB port
• PC analysis software

Dimensions: 69mm (L) x 50mm (W) x 17.3mm (H)
Weight : 100g

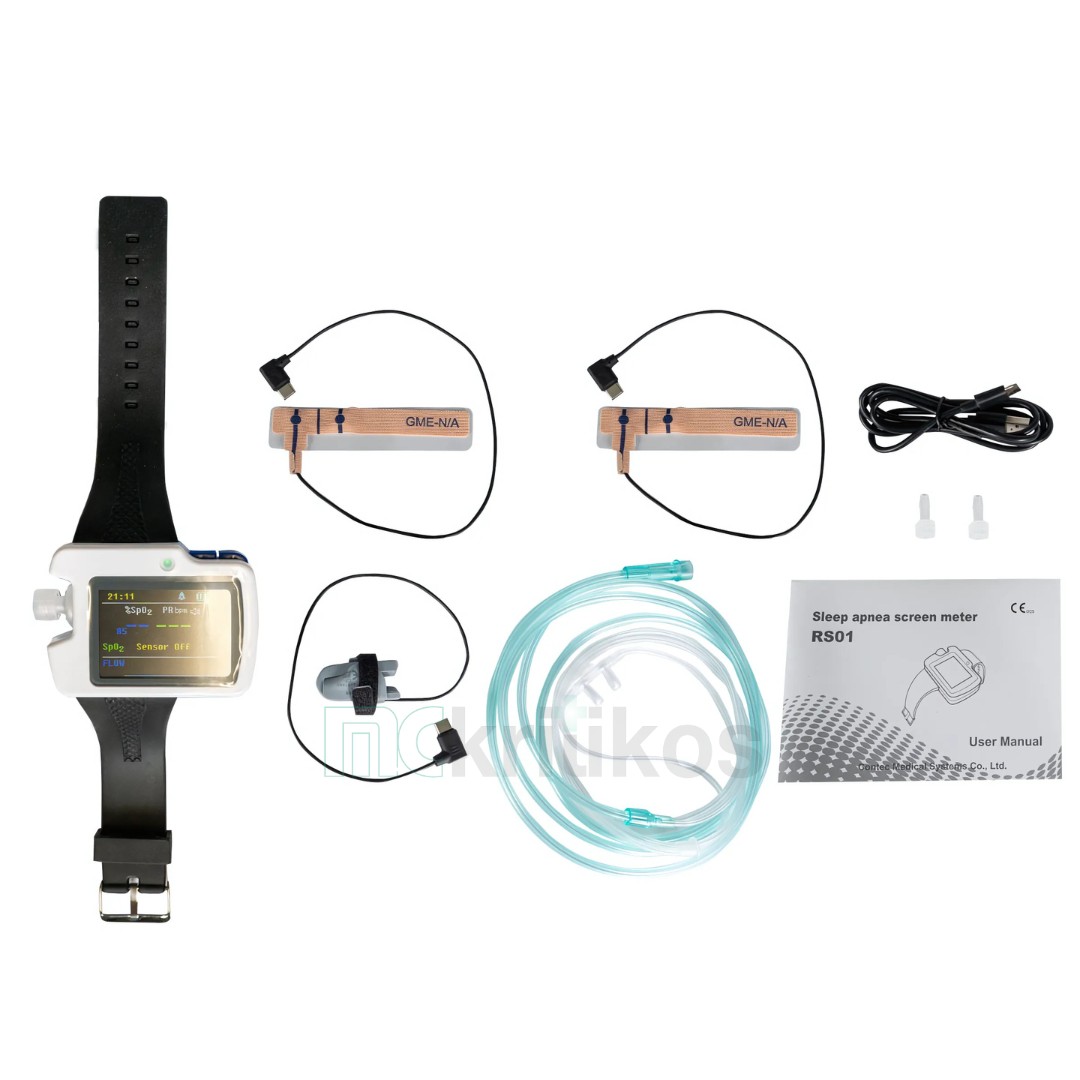

Package Contents:

• USB cable
• Nasal tube
• 2x nasal tube connectors
• 2x disposable SpO2 sensors (Adult & Pediatric)
• Reusable SpO2 sensor (Adult & Pediatric)
• User manual

Sample Report.

See the brochure here.
